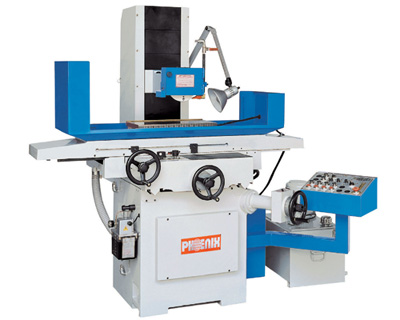

MODEL
|
Unit
|
FSG-2550H
|
FSG-2550AH
|
| Table size |
mm (inch)
|
250x500 (10"x20") |
| Max. grinding surface |
mm (inch)
|
250x500 (10"x20") |
| Max. distance center of spindle to table |
mm (inch)
|
500 mm (20")
|
| Table speed |
m/min
("/min) |
5~25 M/min |
| Table guideway |
|
V & Flat way |
| Auto. cross feed increment |
approx.
mm (inch) |
Manual |
0.1mm ~ 12mm |
| Rapid power cross feed approx. |
mm/min
("/min) |
Manual |
1100 mm/min (60Hz) /
900 mm/min (50Hz) |
| Cross feed on hand wheel |
1 rev
1 gra |
5 mm (0.2")
0.02 mm (0.001")
|
| Rapid power head elevation approx. (Option) |
60Hz
50Hz |
550 mm/min (13"/min) (60Hz)
450 mm/min (11"/min) (50Hz) |
| Vertical feed on hand wheel |
1 rev
1 gra |
2 mm (0.05")
0.01 mm (0.0002") (Std.) / 0.005mm (0.0001") (w/AD5, Opt.) |
| Vertical feed with M. P. G. |
1 rev
1 gra |
- |
| Auto. down feed |
(Option) |
0.001 mm~0.999 mm/Time (0.0001"~0.0999"/Time, Opt.) |
| Wheel speed |
60Hz/50Hz |
3500 R.P.M. (60Hz) / 2900 R.P.M. (50Hz) |
| Wheel dimension |
mm (inch) |
180x13x31.75 mm (max. 200x20x31.75mm)
(7"x0.5"x1.25") (max. 8"x0.75"x1.25") |
| Spindle motor |
HP |
2HP |
| Hydraulic pump motor |
HP |
1HP |
| Auto. cross feed motor |
W or HP |
1/5HP |
| Rapid head elevation motor |
HP |
1/5HP (Opt.) |
| Machine net weight |
kgs (Lbs) |
1350 (2970 Lbs) |
| Packing gross weight |
kgs (Lbs) |
1550 (3410 Lbs) |
| Machine floor space |
mm (inch) |
2250x1400
(89"x55") |
| Packing dimensions (LxWxH) |
cm (inch) |
212x146x200
(84"x58"x79") |
