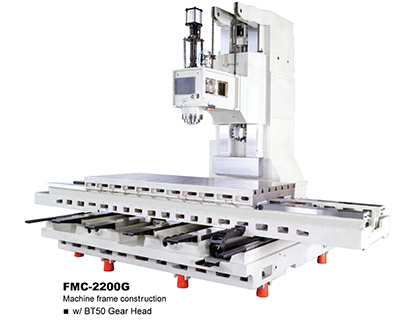

FMC-1600 / 2000 / 2200 / 1600G / 2000G / 2200G


分享到：

MODEL

FMC-1600 /
FMC-1600G

FMC-2000 /
FMC-2000G

FMC-2200G /
FMC-2200G

TABLE

Working surface

1800 x 840mm
(70-7/8" x 33-1/16")

2200 x 850mm
(86-5/8" x 33-7/16")

2400 x 1000mm
(94-1/2" x 39-3/8")

T-slots
(size x number x pitch)

22mm x 5 x 150mm
(0.866" x 5 x 5.906")

22mm x 5 x 150mm
(0.866" x 5 x 5.906")

Max. table load

2200kgs (4850 lbs)

2500kgs (5511 lbs)

3000kgs (6614 lbs)

TRAVEL

Longitudinal travel
(X axis)

1600mm (63")

2000mm (78-3/4")

 2200mm (86-5/8")

Cross travel (Y axis)

800mm (31-1/2")

900mm (35-7/16")

1000mm (39-3/8")

Vertical travel (Z axis)

800mm (31-1/2")

800mm (31-1/2")

800mm (31-1/2")
Guide ways
(X / Y / Z axes)		 2 / 4 / 2 ways 2 / 4 / 2 ways 2 / 4 / 2 ways

Distance from spindle
end to table

 200~1000mm(7-7/8"~39-3/8") 200~1000mm(7-7/8"~39-3/8") 250~1050mm(9-13/16"~41-5/16")

Distance from spindle
center to column

 870mm (34-1/4") 975mm (38-3/8") 1050mm (41-5/16")

SPINDLE

Spindle nose taper

BT-40 (or CAT40 / DIN40, opt.) (for FMC-1600 / 2000 / 2200) /
BT-50 (or CAT50 / DIN50, opt.) (for FMC-1600G / 2000G / 2200G)

Spindle speeds

8000 r.p.m. (for FMC-1600 / 2000 / 2200) /
6000 r.p.m. (for FMC-1600G / 2000G / 2200G)

Transmission

belt /
H / L gear

belt /
H / L gear

belt /
H / L gear

FEED

Cutting feed rate
(X, Y, Z axes)

1~10000 mm/min. (max.)

Rapid traverse
(X, Y axes)

15 m/min. (max.)

Rapid traverse
(Z axis)

12 m/min. (max.)

ATC

Tool storage capacity

24 pcs (arm)
(or 32 pcs (chain), opt.)

Max. tool weight

6 kgs (13.23 lbs) for BT40 / 15 kgs (33.07 lbs) for BT50

Max. tool size
(dia. x length)

100mmx300mm (3-15/16"x11-13/16") for BT40 / 125mm x 300mm (4-15/16"x11-13/16") for BT50

Tool selection

Random

Tool shank

BT-40 (for FMC-1600 / 2000 / 2200) /
BT-50 (for FMC-1600G / 2000G / 2200G)

Pull stud bolt

MAS-P40T-1 (for FMC-1600 / 2000 / 2200) /
MAS-P50T-1 (for FMC-1600G / 2000G / 2200G)

MOTOR
Spindle motor
(AC servo)

11 / 15 KW (for FMC-1600 / 2000 / 2200) /
15 / 18.5 KW (for FMC-1600G / 2000G / 2200G)

X, Y, Z axes motor
(AC servo)

4.5 / 7.0 / 4.5 KW

7.0 / 9.0 / 4.5 KW

Coolant pump motor

3/4HP

DIMENSION

Machine size

4400x3300x3300 mm
(173-1/4"x129-15/16"x129-15/16")

 5500x3435x3310mm
 (216-1/2"x135-1/4"x130-5/16")

 6130x4200x3661mm
 (241-15/16"x165-3/8"x144-1/8")

Machine weight

14500kgs (31965 lbs) /
15000kgs (33068 lbs)		 16000kgs (35272 lbs) /
16500kgs (36374 lbs)		 24000kgs (52908 lbs) /
24500kgs (54010 lbs)
  • The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the performance of the machine without prior notice. All the specifications shown above are just for reference.
