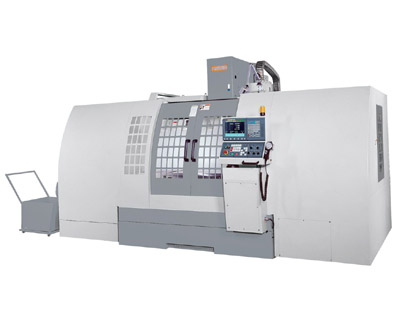

MODEL
|
FM-305MH
|
FM-305ATC
|
FM-305MH-L
|
FM-305ATC-L
|
TABLE
|
|
Working surface
|
610x1854mm(24"x73")
|
800x1854mm (31-1/2"x73") |
|
T-slots (size x number x pitch)
|
18mmx5x70mm (0.709"x5x2.756")
|
18mmx5x70mm(0.709"x5x2.756") |
|
Max. table load
|
1500kgs (3300 lbs)
|
1500kgs (3300 lbs)
|
TRAVEL
|
|
Longitudinal travel (X axis)
|
1500mm (59")
|
1500mm (59")
|
|
Cross travel (Y axis)
|
850mm (33-7/16")
|
1020mm (40-1/8")
|
|
Vertical travel (Z axis)
|
710mm (28")
|
710mm (28")
|
|
Distance from spindle end to table
|
95~805mm (3-3/4"~31-11/16")
|
95~805mm (3-3/4"~31-11/16")
|
|
Distance from spindle center to column
|
869mm (34-3/16")
|
1050mm (41-5/16")
|
|
Distance from floor to table surface
|
895mm (35-1/4")
|
785mm (30-7/8")
|
SPINDLE
|
|
Spindle nose taper
|
BT40 (or BT50, opt.)
|
BT40 (or BT50, opt.)
|
|
Spindle speeds
|
vari 6000 r.p.m. (BT40)
(or 8000/10000 r.p.m., opt.)(BT40)
|
vari 6000 r.p.m. (BT40)
(or 8000/10000 r.p.m., opt.)(BT40)
|
FEED
|
|
Cutting feed rate (X, Y, Z axes)
|
1~3000 mm/min. (max.)
【or 1~5000 mm/min. (max.) (F-F), opt.】
|
1~5000 mm/min. (max.)
|
|
Rapid traverse (X, Y axes)
|
5.0 m/min. (max.)
【or 10 m/min. (max.) (F-F), opt.】
|
10.0 m/min. (max.)
|
|
Rapid traverse (Z axis)
|
5.0 m/min. (max.)
【or 10 m/min. (max.) (F-F), opt.】
|
10.0 m/min. (max.)
|
| Gear ratio of motor pulley to ballscrew pulley on X, Y, Z axes |
1:2/1:1.33【or direct coupled (F-F), opt.】
|
Direct coupled |
ATC
|
|
Tool storage capacity
|
—
|
16pcs (or 20pcs, opt.)
(BT40) (carrousel)
|
—
|
16pcs (or 20pcs, opt.)
(BT40) (carrousel)
|
|
Max. tool weight
|
—
|
7kgs (15.4 lbs)/
15kgs (33.1 lbs)(BT50)
|
—
|
7kgs (15.4 lbs)/
15kgs (33.1 lbs)(BT50)
|
|
Max. tool size (dia. x length)
|
—
|
89x250mm (3-1/2"x9-7/8")/ 125x300mm (4-7/8"x11-3/4")(BT50)
|
—
|
89x250mm (3-1/2"x9-7/8")/ 125x300mm (4-7/8"x11-3/4")(BT50)
|
|
Tool selection
|
—
|
Random
|
—
|
Random
|
|
Tool shank
|
—
|
BT40 (or BT50, opt.)
|
—
|
BT40 (or BT50, opt.)
|
|
Pull stud bolt
|
—
|
MAS-P40T-1/
MAS-P50T-1 (BT50)
|
—
|
MAS-P40T-1/
MAS-P50T-1 (BT50)
|
|
Distance from gauge line of tool holder to table
|
—
|
645mm (25-3/8")
|
—
|
645mm (25-3/8")
|
MOTOR
|
|
Spindle motor (AC servo)
|
7.5/11KW (or 11/15 KW, opt.)
|
7.5/11KW (or 11/15 KW, opt.)
|
|
X, Y, Z axes motor
|
AC servo, 1KW, 2000 r.p.m.
【or 2KW, 2000 r.p.m. (F-F), opt.】
|
AC servo, 3.5KW, 2000 r.p.m.
|
|
Coolant pump motor
|
AC 1/6HP / 1/4HP(F.E.G.)
|
AC 1/4HP
|
GENERAL
|
|
Gross weight (Approx.)
|
6000kgs (13200 lbs)
|
6200kgs (13640 lbs)
|
6300kgs (13860 lbs) |
6500kgs(14300lbs) |
|
Packing size (L x W x H)
|
3200x2260x2550mm (126"x89"x100-3/8")
|
3600x2260x2550mm(142"x89"x100-3/8")
|
