5-AXIS MACHINING CENTER X SERIES

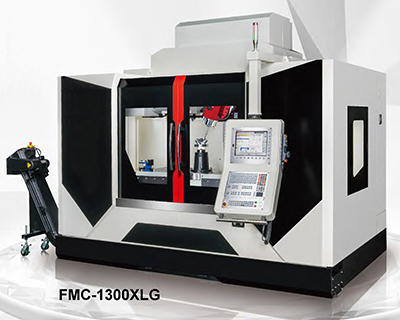

FMC-1300XLG

分享到：

Model	Unit	FMC-1300XLG
X-axis travel	mm	1300
Y-axis travel	mm	700
Z-axis travel	mm	700
Spindle nose to table surface (vertical)	mm	20~720
Spindle center to table surface (horizontal)	mm	260~960
Spindle center to column surface (guideway surface)		770
Table
T-Slot (Q'ty X W X Dist.)	mm	5X18X125
Table size	mm	700X1450
Max. table load	kgs	1000
Spindle speed	rpm	15000
Built-in type spindle
Spindle motor	kw	15/19.4
Torque output of spindle motor		71.6/92.6
Spindle hole	mm	70
Spindle nose taper		BBT40
Swiveling Spindle Head (B-axis)
Transmission		Worm shaft/worm gear
Speed ratio		1:120
Swiveling angle	deg	±120
Max. speed	rpm	16.6
Min. indexing angle		0.001
Rotary Table (C-axis)
Transmission		DD
Table diameter	mm	630
Center hole diameter	mm	60
Speed		50
Min. indexing angle	rpm	0.001
Axes Feed
Rapid traverse rate (X, Y, Z-axis)	M/min	30/30/24
Cutting feed rate	mm/min	10000
Tool Magazine
Magazine type		Arm type
Tool storage capacity		24(32/40)
Max. tool diameter	mm	80
Max. tool length	mm	250
Max. tool weight	kg	7
Accuracy
Positioning accuracy (X, Y, Z-axis)	mm	0.005 / 300
Positioning accuracy (rotary table on B, C-axis)	sec	14"/14"
Repeatability accuracy (X, Y, Z-axis)	mm	0.003
Repeatability accuracy (rotary table on B, C-axis)	sec	10"/8"
Others
Machine weight	kg	10000
Machine height	mm	3300
Space occupied	mm	4670x3400

The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the
performance of the machine without prior notice. All the specifications shown above are just for reference.
